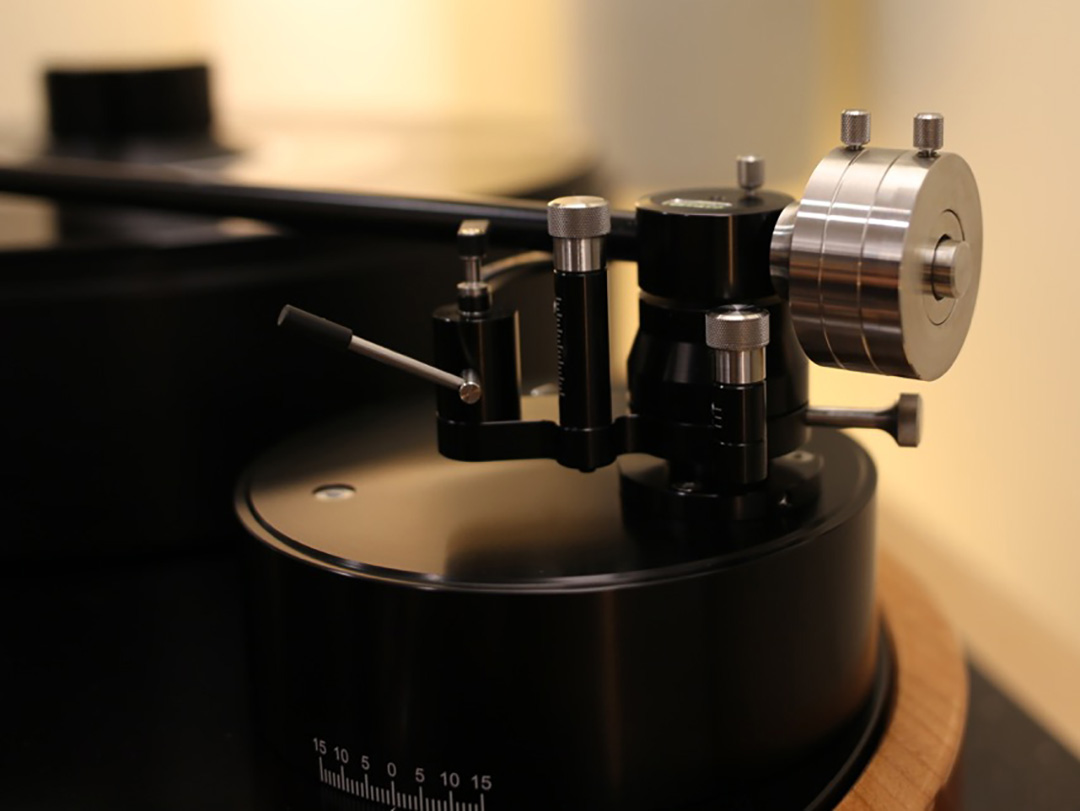

AMG 12JT Turbo Tonearm

The 12JT Turbo expands upon AMG’s patented tonearm design with improved sound and functionality.

The 12JT Turbo expands upon AMG’s patented tonearm design with improved sound and functionality.

The new larger bearing assembly houses both the unique vertical bearing and a larger horizontal axle, featuring dual micro-ball bearing assemblies for enhanced stability and reduced friction. All critical parameters of the 12JT Turbo are accomplished with calibrated locking thumbscrews for added rigidity and precise adjustment.

The 12JT Turbo is available with the Viella V12 turntable as the AMG V12 Turbo package, and can be fitted to other turntables with our CIRCLE Linn-style or OVAL SME-style adaptors.

ABOUT

Bearing:

  • Vertical bearing design based on helicopter rotor bearings for precise alignment with the armwand
  • Uses two 0.5 mm thick spring steel wires, allowing fine azimuth adjustment and eliminating bearing play
  • Horizontal axle made from hardened tool steel and uses dual micro-ball bearing assemblies for enhanced stability and reduced friction
  • Extremely precise, maintenance-free, and never requires adjustment


Armwand:

  • Constructed of top quality aircraft Aluminum
  • Anodized finish for resonance control
  • 13.9 gram effective mass


Counterweight:

  • 2-piece with Teflon-decoupled sleeve with thumbscrew adjustment


Copper Internal Wiring:

  • Multiple gauges of high quality copper


Magnetic Anti-Skating:

  • Decoupled via ring magnet and 2-bar magnets
  • Magnetic fields isolated in our patented bearing housing


VTA:

  • Calibrated locking thumbscrews for easy, tool-free adjustment



SPECIFICATIONS

  • Effective Length: 304.8mm
  • Pivot to Spindle Length: 291.4mm
  • Overhang: 13.4mm
  • Offset Angle: 17.89 degrees
  • Effective Mass: 13.9 grams
  • Null Points: Inner: 66.04mm, Outer: 120.9mm
